Lesson 35 - Deinonychus

Deinonychus (meaning 'terrible claw' in Greek) was a genus of carnivorous dromaeosaurid dinosaur. There is one described species, Deinonychus antirrhopus. This 3.4 meter (11 ft) long dinosaur lived during the early Cretaceous Period, about 115-108 million years ago (from the mid-Aptian to early Albian stages). Fossils have been recovered from the U.S. states of Montana, Wyoming, and Oklahoma, in rocks of the Cloverly Formation and Antlers Formation, though teeth that may belong to Deinonychus have been found much farther east in Maryland.



Deinonychus

Quick Facts



Length:  11 Ft

Height:  2 Ft 10 In (at the hip)

Weight:   160 lbs

Date Range:   115 - 108 Ma, Aptian - Albian Age, Cretaceous Period



Deinonychus

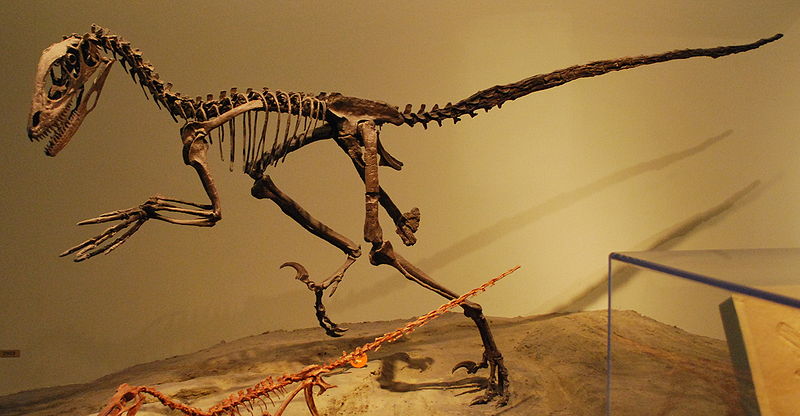

Fossil skeleton at the Field Museum  (Picture Source)

Paleontologist John Ostrom's study of Deinonychus in the late 1960s revolutionized the way scientists thought about dinosaurs, leading to the "Dinosaur renaissance" and igniting the debate on whether dinosaurs were warm-blooded. Before this, the popular conception of dinosaurs had been one of plodding, reptilian giants. Ostrom noted the small body, sleek, horizontal, posture, ratite-like spine, and—especially—the enlarged raptorial claws on the feet, which suggested an active, agile predator.

"Terrible claw" refers to the unusually large, sickle-shaped talon on the second toe of each hind foot. The fossil YPM 5205 preserves a large, strongly curved ungual. In life, archosaurs have a horny sheath over this bone which extends the length. Ostrom looked at crocodile and bird claws and reconstructed the claw for YPM 5205 as over 120 millimetres (4.7 in) long. The species name antirrhopus means “counter balance”, which refers to John Ostrom's idea about the function of the tail. As in other dromaeosaurids, the tail vertebrae have a series of ossified tendons and super-elongated bone processes. These features seemed to make the tail into a stiff counterbalance, but a fossil of the very closely related Velociraptor mongoliensis (IGM 100/986) has an articulated tail skeleton that is curved laterally in a long S–shape. This suggests that, in life, the tail could swish to the sides with a high degree of flexibility.

In both the Cloverly and Antlers Formation, Deinonychus remains have been found closely associated with those of the ornithopod Tenontosaurus. Teeth discovered associated with Tenontosaurus specimens imply it was hunted or at least scavenged upon by Deinonychus.

Description

Based on the largest known specimens, Deinonychus could reach at least 3.4 metres
Deinonychus scale
Deinonychus scale to human (Picture Source)
 (11 ft 2 in) in length, with a skull length of 410 mm (16.1 in), a hip height of 0.87 metres (2 ft 10 in), and an estimated weight of 73 kilograms (160 lb). Its skull was equipped with powerful jaws lined with around sixty curved, blade-like teeth. Studies of the skull have progressed a great deal over the decades. Ostrom reconstructed the partial, imperfectly preserved, skulls that he had as triangular, broad, and fairly similar to Allosaurus. Additional Deinonychus skull material and closely related species found with good three-dimensional preservation show that the palate was more vaulted than Ostrom thought, making the snout far narrower, while the jugals flared broadly, giving greater stereoscopic vision. The skull of Deinonychus was different from that of Velociraptor, however, in that it had a more robust skull roof like that of Dromaeosaurus, and did not have the depressed nasals of Velociraptor. Both the skull and the lower jaw had fenestrae (skull openings) which reduced the weight of the skull. In Deinonychus, the antorbital fenestra, a skull opening between the eye and nostril, was particularly large.

Deinonychus possessed large hands with three claws on each forelimb. The first digit was shortest and the second was longest. Each hind foot bore a sickle-shaped claw on the second digit, which was probably used during predation.

No feathers have ever been found in association with fossils of Deinonychus. Nonetheless,
Deinonychus
Deinonychus model in the "Feathered Dinosaurs and the Origin of Flight" traveling exhibit
 the evidence suggests that the Dromaeosauridae, including Deinonychus, had feathers. The genus Microraptor is both older geologically and more primitive phylogenetically than Deinonychus, and within the same family. Multiple fossils of Microraptor preserve pennaceous, vaned feathers like those of modern birds on the arms, legs, and tail, along with covert and contour feathers. Velociraptor is geologically younger than Deinonychus, but even more closely related (within the subfamily velociraptorinae, see Classification, below). A specimen of Velociraptor has been found with quill knobs on the ulna. Quill knobs are where the follicular ligaments attached, and are a direct indicator of feathers of modern aspect.

Classification

Deinonychus is one of the best-known dromaeosaurids, and is a close relative of the smaller Velociraptor, found in younger, Late Cretaceous-age rock formations in Central Asia. The clade they form is called Velociraptorinae. The subfamily name Velociraptorinae was first coined by Rinchen Barsbold in 1983 and originally contained the single genus Velociraptor. Later Phil Currie included most of the dromaeosaurids. Two Late Cretaceous genera, Tsaagan from Mongolia and the North American Saurornitholestes, may also be close relatives, but the latter is poorly known and hard to classify. Velociraptor and its allies are regarded as using their claws more than their skulls as killing tools, as opposed to dromaeosaurids like Dromaeosaurus with stockier skulls. Together with the troodontids, the dromaeosaurids form the Deinonychosauria clade which is a sister taxon of aves. Phylogenetically, the Deinonychosauria represent the group of non-avian dinosaurs most closely related to birds.

Discovery and naming

Fossilized remains of Deinonychus have been recovered from the Cloverly Formation of Montana and Wyoming and in the roughly contemporary Antlers Formation of Oklahoma, in North America. The Cloverly formation has been dated to the late Aptian through early Albian stages of the early Cretaceous, about 115 to 108 Ma. Additionally, teeth found in the Arundel Clay Facies (mid-Aptian), of the Potomac Formation on the Atlantic Coastal Plain of Maryland may be assigned to the genus.

Implications
Deinonychus archaeopteryx
The similarity of the forelimbs (left) with those of Archaeopteryx (right) led John Ostrom to revive the link between dinosaurs and birds

The description in 1969 by Ostrom of Deinonychus has been described as the most important single discovery of dinosaur paleontology in the mid-20th century. The discovery of this clearly active, agile predator did much to change the scientific (and popular) conception of dinosaurs and opened the door to speculation that dinosaurs may have been warm-blooded. This development has been termed the Dinosaur renaissance. Several years later, Ostrom noted similarities between the forefeet of Deinonychus and that of birds, an observation which led him to revive the hypothesis that birds are descended from dinosaurs. Thirty years later, this idea is almost universally accepted.

Because of its extremely bird-like anatomy and close relationship to other dromaeosaurids, paleontologists hypothesize that Deinonychus was probably covered in feathers. Clear fossil evidence of modern avian-style feathers exists for several related dromaeosaurids, including Velociraptor and Microraptor, though no direct evidence is yet known for Deinonychus itself. When conducting studies of such areas as range of motion in the forelimbs, paleontologists like Phil Senter have taken the likely presence of wing feathers (as present in all known dromaeosaurs with skin impressions) into consideration.

Paleobiology and paleoecology

Geological evidence suggests that Deinonychus inhabited a floodplain or swamplike habitat. The paleoenvironment of both the upper Cloverly Formation and the Antlers Formation, in which remains of Deinonychus have been found, consisted of tropical or sub-tropical forests, deltas and lagoons, not unlike today's Louisiana. Other animals Deinonychus shared its world with include herbivorous dinosaurs such as the armored Sauropelta and the ornithopods Zephyrosaurus and Tenontosaurus. In Oklahoma, the ecosystem of Deinonychus also included the large theropod Acrocanthosaurus, the huge sauropod Sauroposeidon, the crocodilian Goniopholis, and the gar Lepisosteus. If the teeth found in Maryland are those of Deinonychus, then its neighbors would include Astrodon and a nodosaur (called Priconodon) only known from teeth. The middle portion of the Cloverly Formation ranges in age from 115 ± 10 Ma near the base to 108.5 ± 0.2 Ma near the top.

Predatory behavior

Deinonychus teeth found in association with fossils of the ornithopod dinosaur Tenontosaurus are quite common in the Cloverly Formation. Two quarries have been discovered that preserve fairly complete Deinonychus fossils near Tenontosaurus fossils. The first, the Yale quarry in the Cloverly of Montana, includes numerous teeth, four adult Deinonychus and one juvenile Deinonychus. The association of this number of Deinonychus skeletons in a single quarry suggests that Deinonychus may have fed on that animal, and perhaps hunted it. Ostrom and Maxwell have even used this information to speculate that Deinonychus might have lived and hunted in packs. The second such quarry is from the Antlers Formation of Oklahoma. The site contains six partial skeletons of Tenontosaurus of various sizes, along with one partial skeleton and many teeth of Deinonychus. One tenontosaur humerus even bears what might be Deinonychus tooth marks. Brinkman et al. (1998) point out that Deinonychus had an adult mass of 70-100 kilograms, whereas adult tenontosaurs were 1-4 metric tons. A solitary Deinonychus could not kill an adult tenontosaur, suggesting that pack hunting is possible.

Bite force
Deinonychus skull
 Cast of a Deinonychus skull (Picture Source

Bite force estimates for Deinonychus were first produced in 2005, based on reconstructed jaw musculature. This study concluded that Deinonychus likely had a maximum bite force only 15% that of the modern American Alligator. A 2010 study by Paul Gignac and colleagues attempted to estimate the bite force based directly on newly discovered Deinonychus tooth puncture marks in the bones of a Tenontosaurus. These puncture marks came from a large individual, and provided the first evidence that large Deinonychus could bite through bone. Using the tooth marks, Gignac's team were able to determine that the bite force of Deinonychus was significantly higher than earlier studies had estimated by biomechanical studies alone. They found the bite force of Deinonychus to be between 4,100 and 8,200 newtons, greater than living carnivorous mammals including the hyena, and equivalent to a similarly sized alligator.

Gignac and colleagues also noted, however, that bone puncture marks from Deinonychus are relatively rare, and unlike larger theropods with many known puncture marks like Tyrannosaurus, Deinonychus probably did not frequently bite through or eat bone. Instead, they probably used their high bite force in defense or prey capture, rather than feeding.

Limb function
Deinonychus foot
Cast of the foot bones showing sickle-claw, at the Zoological Museum in Copenhagen
 (Picture Source

Despite being the most distinctive feature of Deinonychus, the shape and curvature of the sickle-claw varies between specimens. The type specimen described by Ostrom in 1969 has a strongly curved sickle claw, while a newer specimen described in 1976 had a claw with much weaker curvature, more similar in profile with the 'normal' claws on the remaining toes. Ostrom suggested that this difference in the size and shape of the sickle claws could be due to individual, sexual, or age-related variation, but admitted he could not be sure.

There is anatomical and trackway evidence that this talon was held up off the ground while the dinosaur walked on the third and fourth toes.

Ostrom suggested that Deinonychus could kick with the sickle claw to cut and slash at its prey. Some researchers even suggested that the talon was used to disembowel large ceratopsian dinosaurs. Other studies have suggested that the sickle claws were not used to slash but rather to deliver small stabs to the victim. Manning et al. (2005) ran tests on a robotic replica that precisely matched the anatomy of Deinonychus and Velociraptor, and used hydraulic rams to make the robot strike a pig carcass. In these tests the talons made only shallow punctures and could not cut or slash. The authors suggested that the talons would have been more effective in climbing than in dealing killing blows.

Ostrom compared Deinonychus to the ostrich and cassowary. He noted that the bird species can inflict serious injury with the large claw on the second toe. The cassowary has claws up to 125 millimetres (4.9 in) long. Ostrom cited Gilliard (1958) in saying that they can sever an arm or disembowel a man. Kofron (1999 and 2003) studied 241 documented cassowary attacks and found that one human and two dogs had been killed, but no evidence that cassowaries can disembowel or dismember other animals. Cassowaries use their claws to defend themselves, to attack threatening animals, and in agonistic displays such as the Bowed Threat Display. The seriema also has an enlarged second toe claw, and uses it to tear apart small prey items for swallowing.

Biomechanical studies by Ken Carpenter in 2002 confirmed that the most likely function of the forelimbs in predation was grasping, as their great lengths would have permitted longer reach than for most other theropods. The rather large and elongated coracoid, hinting for powerful muscles in the forelimbs, further strengthened this interpretation. Carpenter's biomechanical studies using bones casts also showed that Deinonychus could not fold its arms against its body like a bird ("avian folding"), contrary to what was inferred from the earlier 1985 descriptions by Jacques Gauthier and Gregory S. Paul in 1988.

Studies by Phil Senter in 2006 indicated that Deinonychus forelimbs could be used not only for grasping but also for clutching objects towards the chest. If Deinonychus had feathered fingers and wings, the feathers would have limited the range of motion of the forelimbs to some degree. For example, when Deinonychus extended its arm forward, the 'palm' of the hand automatically rotated to an upward-facing position. This would have caused one wing to block the other if both forelimbs were extended at the same time, leading Senter to conclude that clutching objects to the chest would have only been accomplished with one arm at a time. The function of the fingers would also have been limited by feathers; for example, only the third digit of the hand could have been employed in activities such as probing crevices for small prey items, and only in a position perpendicular to the main wing. Alan Gishlick, in a 2001 study of Deinonychus forelimb mechanics, found that even if large wing feathers were present, the grasping ability of the hand would not have been significantly hindered; rather, grasping would have been accomplished perpendicular to the wing, and objects likely would have been held by both hands simultaneously in a "bear hug" fashion, finding which have been supported by the later forelimb studies by Carpenter and Senter.

Parsons and Parsons have shown that juvenile and sub-adult specimens of Deinonychus display some morphological differences with the adults. For instance, the arms of the younger specimens were proportionally longer than those of the adults, a possible indication of difference in behavior between young and adults. Another example of this could be the function of the pedal claws. Parsons and Parsons have suggested that the claw curvature (which Ostrom [1976] had already shown was different between specimens) maybe was greater for juvenile Deinonychus, as this could help it climb in trees, and that the claws became straighter as the animal became older and started to live solely on the ground. This was based on the hypothesis that some small dromaeosaurids used their pedal claws for climbing.

Speed

Dromaeosaurids, especially Deinonychus, are often depicted as unusually fast-running animals in the popular media, and Ostrom himself speculated that Deinonychus was fleet-footed in his original description. However, when first described, a complete leg of Deinonychus had not been found, and Ostrom's speculation about the length of the femur (upper leg bone) later proved to have been an overestimate. In a later study, Ostrom noted that the ratio of the femur to the tibia (lower leg bone) is not as important in determining speed as the relative length of the foot and lower leg. In modern, fleet-footed birds like the ostrich, the foot-tibia ratio is .95. In unusually fast-running dinosaurs like Struthiomimus, the ratio is .68, but in Deinonychus, the ratio is .48. Ostrom stated that the "only reasonable conclusion" is that Deinonychus was not particularly fast compared to other dinosaurs, and certainly not as fast as modern flightless birds.

The low foot to lower leg ratio in Deinonychus is due partly to an unusually short metatarsus (upper foot bones). The ratio is actually larger in smaller individuals than in larger ones. Ostrom suggested that the short metatarsus may be related to the function of the sickle claw, and used the fact that it appears to get shorter as individuals aged as support for this. He interpreted all these features – the short second toe with enlarged claw, short metatarsus, etc. – as support for the use of the hind leg as an offensive weapon, where the sickle claw would strike downwards and backwards, and the leg pulled back and down at the same time, slashing and tearing at the prey. Ostrom suggested that the short metatarsus reduced overall stress on the leg bones during such an attack, and interpreted the unusual arrangement of muscle attachments in the Deinonychus leg as support for his idea that a different set of muscles were used in the predatory stroke than in walking or running. Therefore, Ostrom concluded that the legs of Deinonychus represented a balance between running adaptations needed for an agile predator, and stress-reducing features to compensate for its unique foot weapon.

In his 1981 study of Canadian dinosaur footprints, Richard Kool produced rough walking speed estimates based on several track-ways made by different species in the Gething Formation of British Columbia. Kool estimated one of these track-ways, representing the ichnospecies Irenichnites gracilis (which may have been made by Deinonychus), to have a walking speed of 10.1 kilometers per hour (6 miles per hour).

Eggs

The identification in 2000 of a probable Deinonychus egg associated with one of the original specimens allowed comparison with other theropod dinosaurs in terms of egg structure, nesting, and reproduction. In their 2006 examination of the specimen, Grellet-Tinner and Makovicky examined the possibility that the dromaeosaurid had been feeding on the egg, or that the egg fragments had been associated with the Deinonychus skeleton by coincidence. They dismissed the idea that the egg had been a meal for the theropod, noting that the fragments were sandwiched between the belly ribs and forelimb bones, making it impossible that they represented contents of the animal's stomach. In addition, the manner in which the egg had been crushed and fragmented indicated that it had been intact at the time of burial, and was broken by the fossilization process. The idea that the egg was randomly associated with the dinosaur were also found to be unlikely; the bones surrounding the egg had not been scattered or disarticulated, but remained fairly intact relative to their positions in life, indicating that the area around and including the egg was not disturbed during preservation. The fact that these bones were belly ribs (gastralia), which are very rarely found articulated, supported this interpretation. All the evidence, according to Grellet-Tinner and Makovicky, indicates that the egg was intact beneath the body of the Deinonychus when it was buried. It is possible that this represents brooding or nesting behavior in Deinonychus similar to that seen in the related troodontids and oviraptorids, or that the egg was in fact inside the oviduct when the animal died.

Examination of the Deinonychus egg's microstructure confirms that it belonged to a theropod, since it shares characteristics with other known theropod eggs and shows dissimilarities with ornithischian and sauropod eggs. Compared to other maniraptoran theropods, the egg of Deinonychus is more similar to those of oviraptorids than to those of troodontids, despite studies which show the latter are more closely related to dromaeosaurids like Deinonychus. While the egg was too badly crushed to accurately determine its size, Grellet-Tinner and Makovicky estimated a diameter of about 7 cm (2.7 in) based on the width of the pelvic canal through which the egg had to have passed. This size is similar to the 7.2 cm diameter of the largest Citipati (an oviraptorid) eggs; Citipati and Deinonychus also shared the same overall body size, supporting this estimate. Additionally, the thicknesses of Citipati and Deinonychus eggshells are almost identical, and since shell thickness correlates with egg volume, this further supports the idea that the eggs of these two animals were about the same size.
